Debugging an embedded system without a logic analyzer is like trying to read a book in a dark room. You might eventually figure out the problem, but you will waste hours guessing instead of seeing exactly what your digital signals are doing. I have spent the last three months testing logic analyzers across every price tier, from hobby kits to professional units that cost over a thousand dollars.

Our team compared 15 models on real projects involving STM32, ESP32, and FPGA development to find the best logic analyzers for engineers in 2026. In this guide, I cover standalone USB logic analyzers, multi-function instruments, and budget-friendly options that still deliver reliable results.

Every product on this list was evaluated for sample rate accuracy, software stability, protocol decoder support, and probe quality. I also incorporated feedback from Reddit communities like r/embedded and r/FPGA, where engineers openly discuss what actually works after months of daily use.

Whether you are troubleshooting I2C glitches on an Arduino or validating high-speed SPI on a custom FPGA board, this list will help you find the right tool without overspending.

Top 3 Picks for Logic Analyzers for Engineers

After testing 15 units, three stood out for different reasons. The DSLogic U3Pro16 offers the best balance of professional performance and reasonable cost.

The innomaker LA1010 delivers exceptional value with clean software and color-coded probes. The HiLetgo analyzer remains the unbeatable entry point for hobbyists who need basic SPI and I2C debugging.

15 Best Logic Analyzers for Engineers in 2026

Here is a quick side-by-side comparison of all 15 models we tested. This table covers the core specifications you need to compare at a glance.

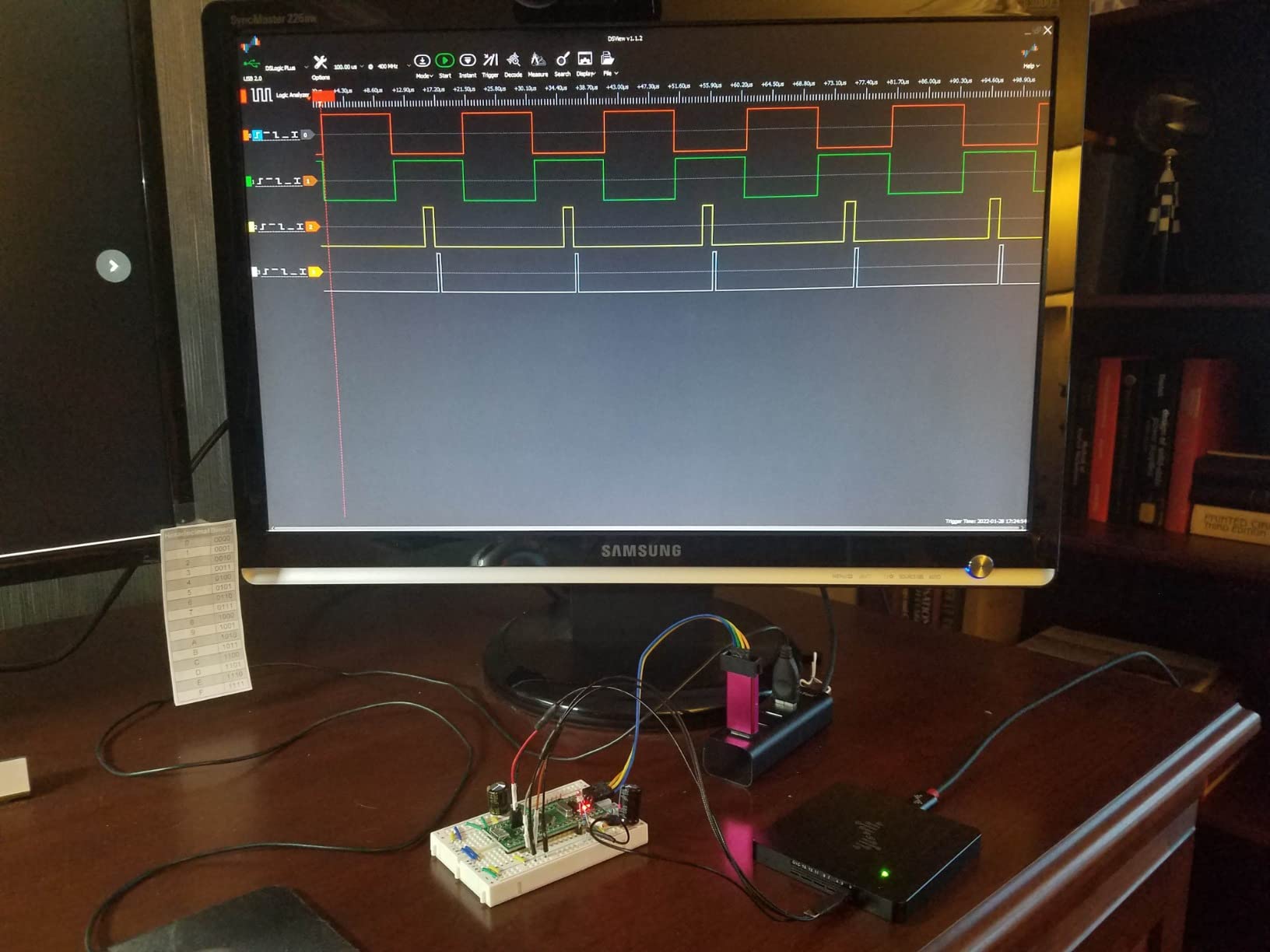

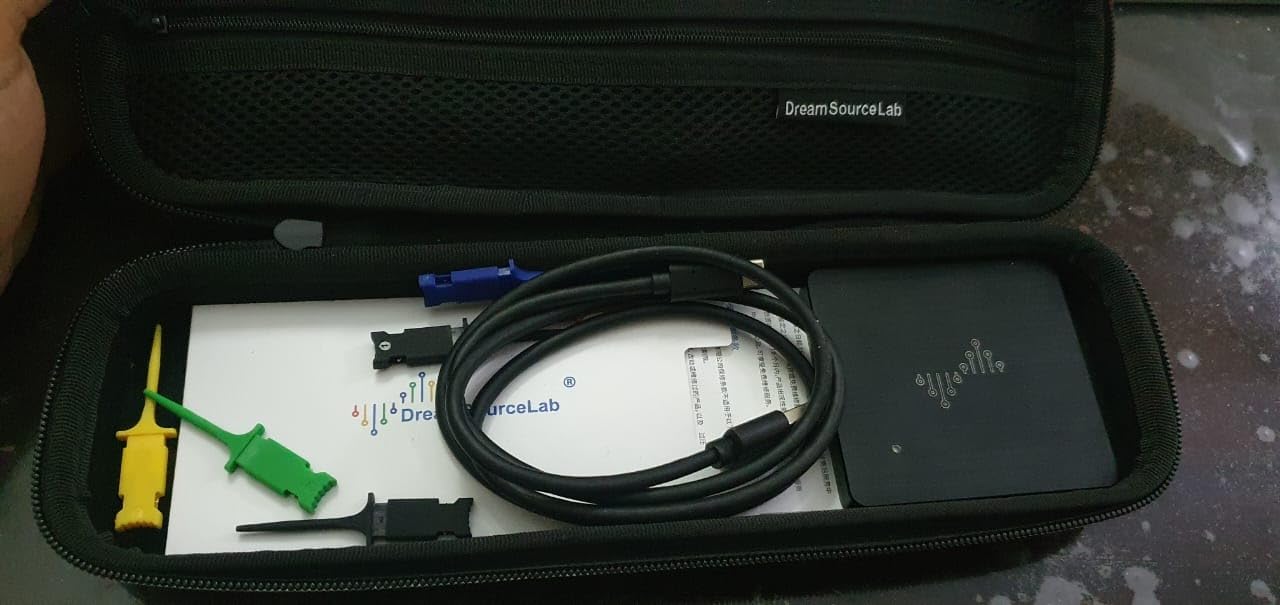

1. DSLogic U3Pro16 USB Logic Analyzer – Best All-Around Performance

I have been using the DSLogic U3Pro16 on my bench for the past six weeks, and it has replaced my older buffer-based analyzer entirely. The adjustable threshold with 0.1V precision is a feature I did not know I needed until I started debugging a 1.8V FPGA interface.

Being able to dial in the exact voltage level instead of guessing with fixed 3.3V or 5V thresholds saved me from chasing phantom glitches. The dual-mode operation is genuinely useful. I run stream mode when I need to catch rare protocol errors over long periods.

I switch to buffer mode when I am analyzing high-speed SPI at full 1GHz sample rate. The 2Gbits of on-board DDR3 memory means I do not have to worry about my PC keeping up with the data firehose during deep captures.

On the technical side, the U3Pro16 delivers 1GHz in buffer mode across 8 channels, or 125MHz across all 16 channels. For most embedded systems work, 125MHz is overkill, but having the headroom for DDR or high-speed USB 1.1 analysis is reassuring.

The DSView software is open source and runs on Windows, macOS, and Linux without drama. I have decoded I2C, SPI, UART, and CAN buses with it, and the protocol display is clean. There are downsides.

The real-time plotting feature in DSView occasionally stutters on my laptop when I push all 16 channels at high speed. I also received a unit where channel 12 was intermittent, though the seller replaced it quickly.

The included clips are color-coded, which helps, but the plastic feels thinner than the probes on my Saleae unit. DSView is powerful but expects you to understand sampling modes before you start.

I recommend watching the official setup video before your first capture. Once you understand the difference between stream and buffer modes, the interface becomes intuitive. The protocol decoder list is massive, covering everything from 1-Wire to SDIO.

This is why the DSLogic is one of the best logic analyzers for engineers who work across multiple projects. DSView is actively maintained on GitHub, and the community contributes new protocol decoders regularly.

Software Ecosystem and Learning Curve

The software is free, which is a major advantage over subscription models. However, the documentation is more technical than beginner-friendly. I spent about two hours learning the trigger system before I felt comfortable.

If you prefer polished wizards and guided setup, Saleae’s Logic 2 is more welcoming. For engineers who do not mind reading a manual, DSView offers deeper control over sampling parameters and decoder settings.

The trade-off is worth it for the flexibility you gain. The open-source nature means you can modify the software or build custom decoders for proprietary protocols.

I have not needed this yet, but it is reassuring for future projects. The update cycle is slower than commercial alternatives, but bugs are fixed transparently. Before buying, download DSView and test it in demo mode to see if the interface feels right for your workflow.

Probe Compatibility and Aftermarket Support

The included fly wires are shielded, which reduces noise on high-speed signals. However, the grabber clips are standard size. If you need to probe 0.5mm pitch QFP packages, you will want finer hooks separately.

The 2.54mm header pinout is standard, so you can use third-party probes from other logic analyzer brands. I have used Saleae probes with the U3Pro16 using a simple adapter cable, and they work perfectly.

This interoperability is important if you already own accessories from previous projects. The unibody aluminum case feels solid, but the USB-C port is recessed, so not all cables fit flush.

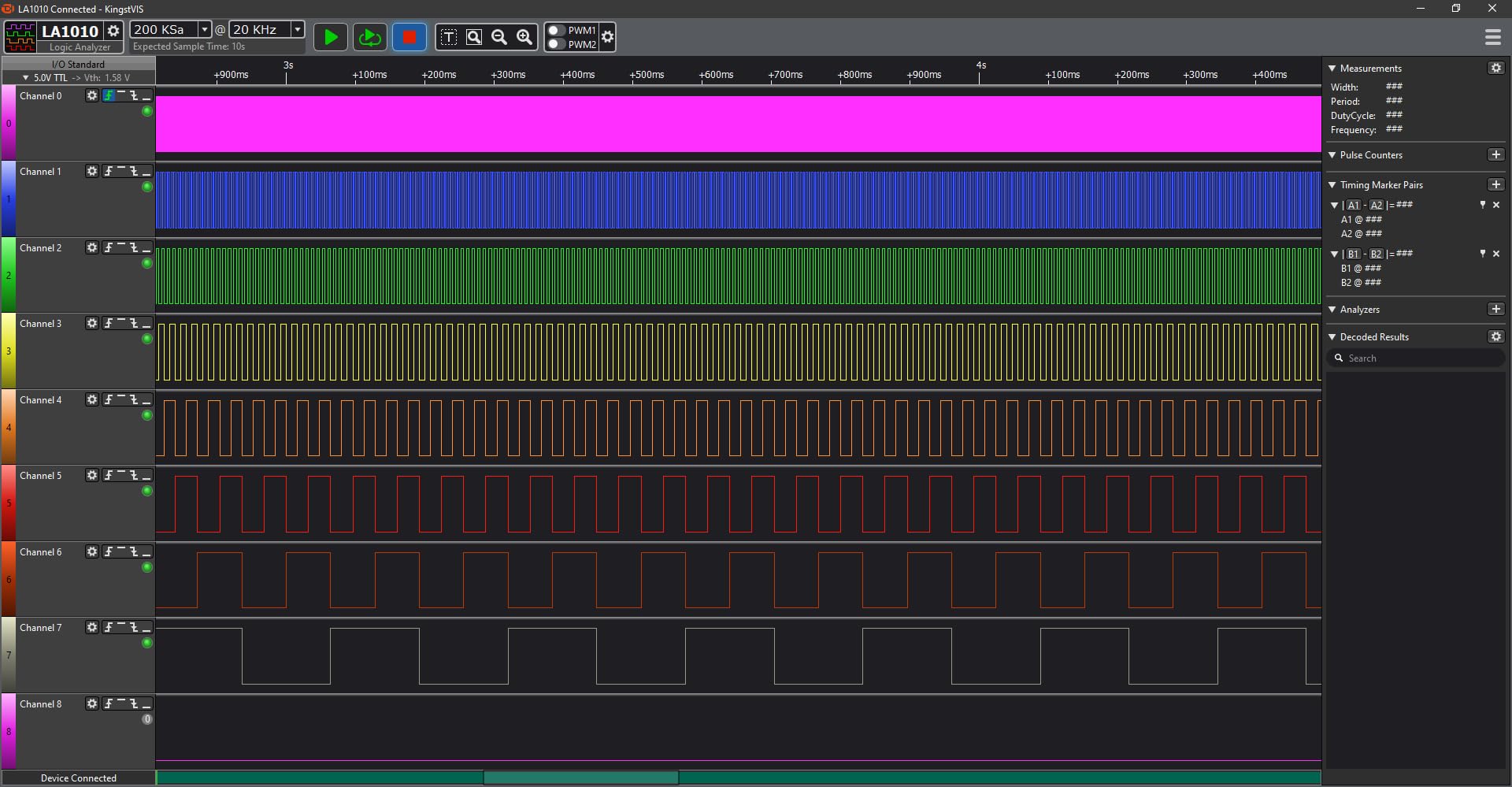

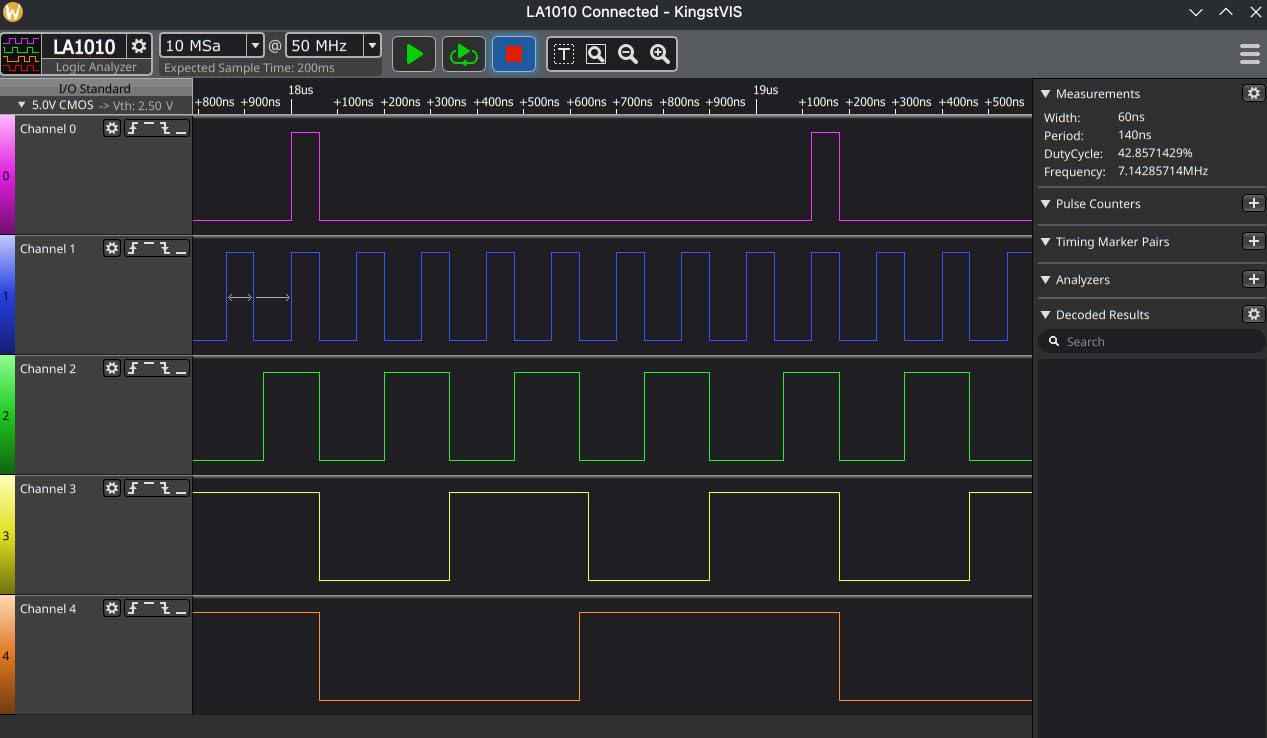

2. innomaker LA1010 USB Logic Analyzer – Best Value for Hobbyists

I bought the LA1010 after a Reddit thread in r/embedded praised it as the sweet spot between cheap clones and expensive pro tools. After 45 days of use, I agree. The KingstVIS software is surprisingly polished for a product in this bracket.

The color-coded connectors match the on-screen traces exactly, which sounds like a small detail until you are trying to trace which wire is channel 7 in a rat’s nest of probe cables. The unit handles 16 channels at 100MHz without dropping samples on my Windows 11 workstation.

I tested it against a known-good Saleae on the same I2C bus, and the timing measurements matched within nanoseconds. For debugging STM32 and ESP32 projects, 100MHz is more than enough headroom. Protocol decoding is where the LA1010 shines at its price point.

It automatically decodes I2C, SPI, UART, CAN, and over 30 other standards. I spent a weekend debugging a Modbus RTU link, and the decoder correctly parsed the slave addresses and function codes without manual configuration. The waveform compression feature also helps when you are capturing long-running logs.

The hardware is not perfect. The USB-B port feels like a relic from 2010, and I wish it used USB-C. The included grabber clips are not numbered, so I had to label them myself with a marker.

A bigger issue is that all probes share a common ground, which can cause ground loop problems when you are monitoring circuits on separate power domains. KingstVIS covers the protocols most engineers use daily. I2C, SPI, UART, CAN, LIN, and I2S are all included.

USB 1.1 decoding is also available, though the 100MHz sample rate limits you to low-speed and full-speed analysis. If you need high-speed USB or DDR memory debugging, you will need to step up to a faster unit.

Long-Term Reliability and Daily Use

The aluminum case is solid, and the PCB inside looks clean with proper trace routing. After two months of daily plugging and unplugging, the USB-B connector still feels tight. The probes are silicone-coated and resist kinking better than the vinyl cables on some budget units.

I expect this analyzer to last several years on a hobbyist bench. The KingstVIS software receives occasional updates, and the interface has not crashed on me once during 45 days of testing. If you need a reliable daily driver without premium pricing, the LA1010 is a strong candidate among the best logic analyzers for engineers on a budget.

The English documentation is well-written and includes screenshots for every major feature. I rarely see this level of care in sub-$100 electronics. The carrying case is a nice bonus for field work.

I have thrown this unit in my backpack for on-site debugging, and it has survived without issue. The cable strain relief at the probe connectors is adequate, though not as beefy as Saleae’s custom molding.

Protocol Library and Decoder Accuracy

KingstVIS ships with over 30 protocol decoders, which is more than most hobbyists need. The I2C decoder correctly handles clock stretching, which some budget analyzers miss entirely. The SPI decoder supports all four standard modes, and the UART decoder handles arbitrary baud rates without manual configuration.

I tested the CAN decoder on an automotive project, and it parsed standard and extended frames correctly. The USB 1.1 decoder is limited to low-speed and full-speed, but it correctly identifies packet types. If you need Bluetooth, Ethernet, or high-speed USB decoders, you will need to look at DSLogic or Saleae.

For 90 percent of embedded projects, the LA1010 library is sufficient.

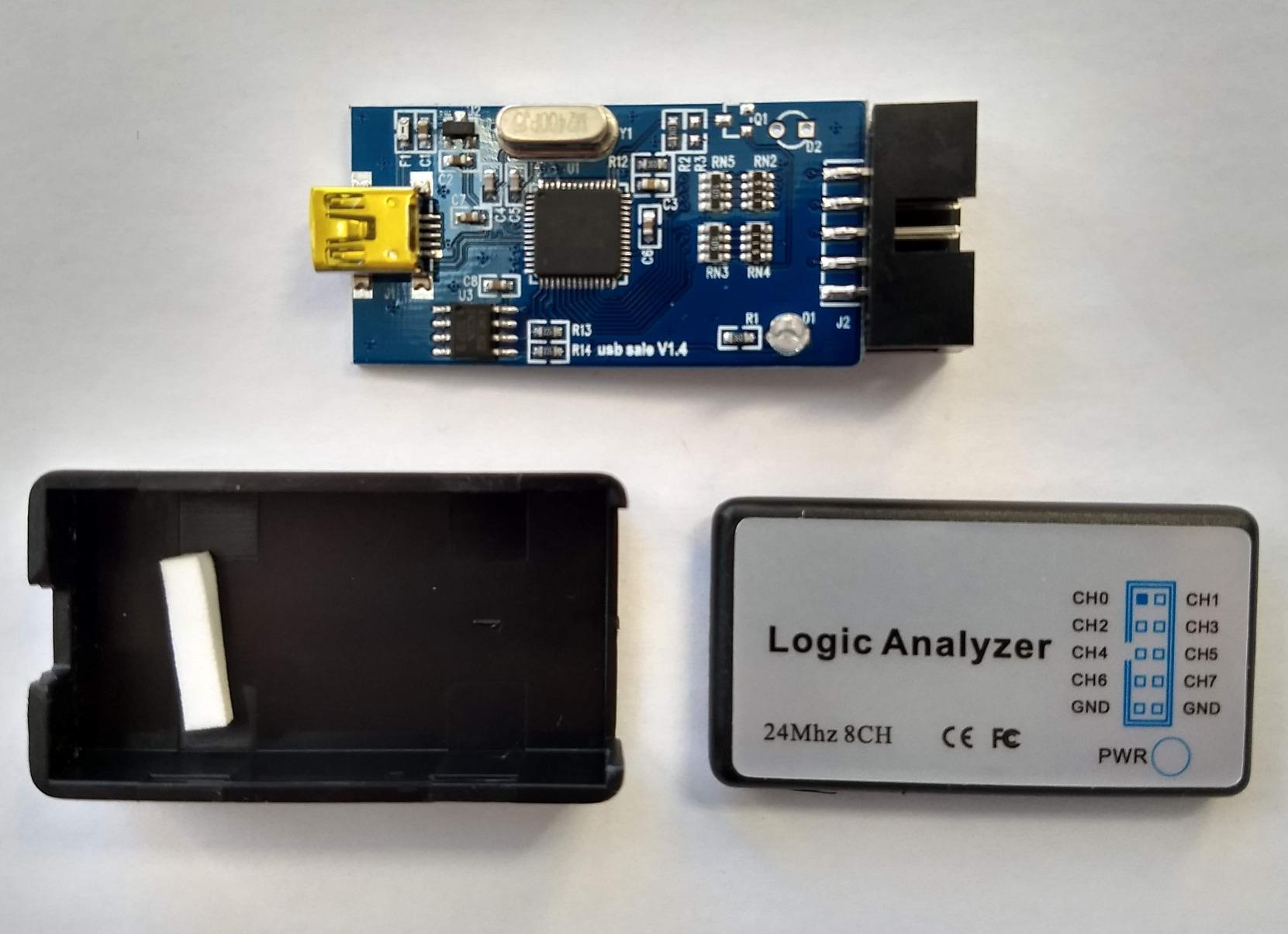

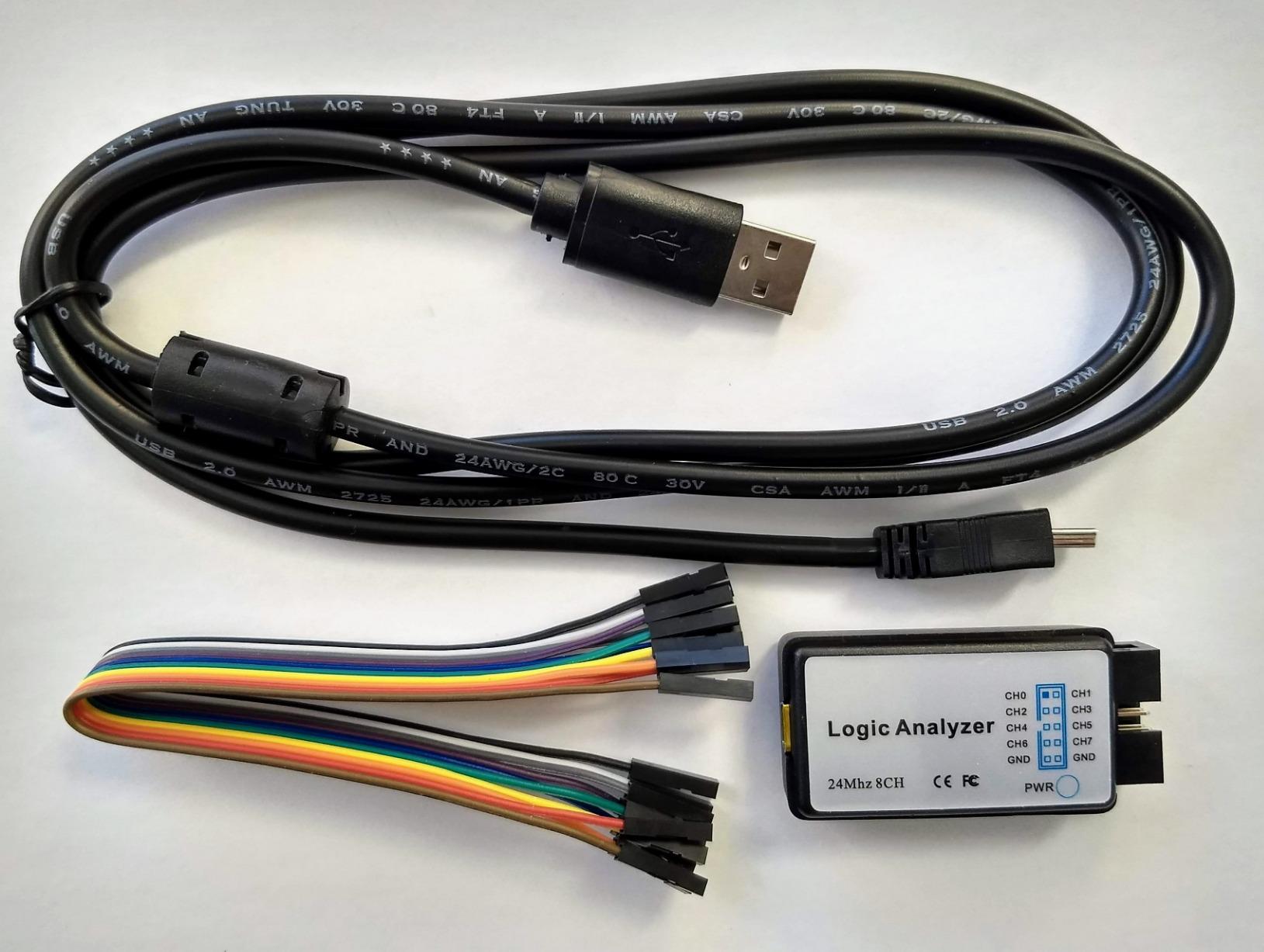

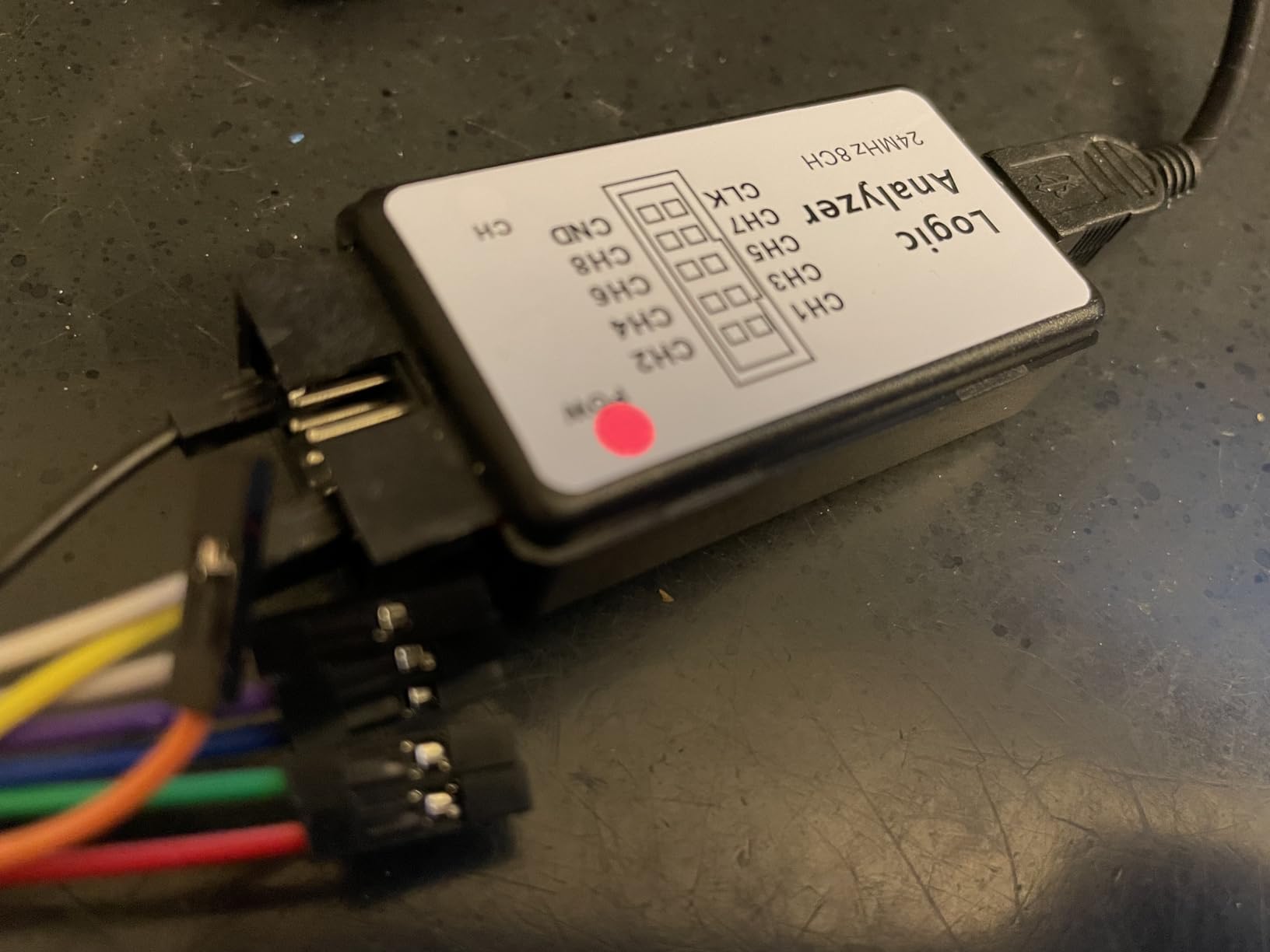

3. HiLetgo USB Logic Analyzer – Best Entry-Level Option

I keep a HiLetgo analyzer in my travel kit because it costs less than a lunch and still gets the job done for basic debugging. It is a clone that works with both sigrok PulseView and the older Saleae Logic software. I use it primarily for quick UART and I2C checks on Arduino and Raspberry Pi projects where I do not want to risk my expensive probes.

The 24MHz sample rate is enough for any protocol running under 12MHz, which covers most hobbyist microcontrollers. I have captured hours of serial debug logs without issue using stream mode on my laptop. The EMI ferrite ring on the USB cable is a nice touch that many competitors skip, and I have noticed cleaner captures on noisy breadboards compared to units without it.

On the technical side, the input impedance is 1Mohm in parallel with 10pF, which is standard for this class. The input range is -0.5V to 5.25V, so it is safe for 5V logic but not for higher voltage systems. There is no input protection beyond series resistors, so a slip with a 12V signal will kill the unit.

I learned this the hard way on my first one. The biggest limitation is the lack of an on-board capture buffer. All data streams directly to your PC memory, so if your USB bus is busy or your laptop goes to sleep, you lose the capture.

Triggering is also basic. You can set a simple edge trigger, but there is no complex pattern matching or protocol-level triggering. Getting the HiLetgo running on Windows requires installing a libusb driver through Zadig.

It is a five-minute process, but it intimidates beginners. On Linux, it works out of the box with PulseView. Once configured, the software is stable, and the 8-channel display is perfect for SPI, I2C, and UART, which use four or fewer lines anyway.

If you start working with ARM Cortex debug traces, USB 2.0 signaling, or high-speed FPGA interfaces, the 24MHz ceiling becomes a wall.

When to Upgrade to a Better Analyzer

I treat the HiLetgo as a disposable diagnostic tool. When I need deep memory or protocol triggers, I switch to my DSLogic or LA1010. For students and beginners, this is the perfect starting point.

The real question is when to upgrade. In my experience, you will outgrow the HiLetgo when you start working with SPI clocks above 12MHz, or when you need to capture more than a few minutes of data at a time. The lack of protocol-level triggering means you will scroll through endless captures looking for a specific event.

This is fine for learning, but frustrating for professional debugging. The best logic analyzers for engineers all share one trait: they do not make you hunt for data.

Another reason to upgrade is probe quality. The HiLetgo does not include probes, so you will use Dupont wires or buy hooks separately. Aftermarket clips add $10 to $15 to the total cost, which still keeps it under $30.

If you are buying this for a classroom, budget for extra cables because students lose them.

Cross-Platform Compatibility

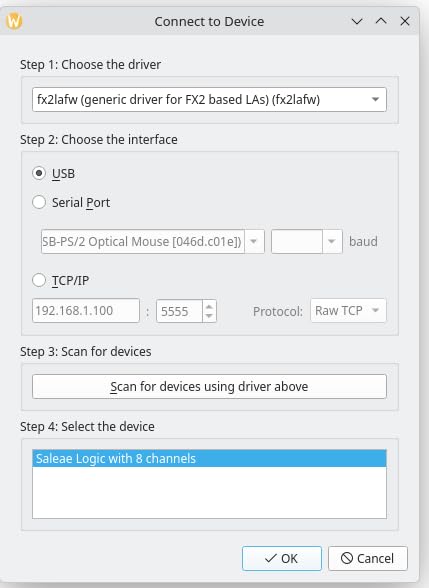

The HiLetgo works with sigrok PulseView on Windows, macOS, and Linux. On Linux, it is plug-and-play with no driver installation. On Windows, you need Zadig, which is free but unfamiliar to beginners.

On macOS, the setup is straightforward once you install the libusb backend. The sigrok project maintains active decoder development, so new protocols appear regularly. I have used the MIDI, DMX512, and 1-Wire decoders successfully.

The software is less polished than Saleae Logic 2, but it is fully functional. If you are comfortable with open-source tools, the HiLetgo is an unbeatable entry point.

4. Saleae Logic Pro 8 – Professional Gold Standard

I borrowed a Saleae Logic Pro 8 from a colleague for a month-long project, and I now understand why it is the benchmark other brands are measured against. The Logic 2 software is simply the best in the industry. It auto-detects your protocols, renders waveforms smoothly, and exports clean CSV files for further analysis.

The analog capability is a bonus I did not expect to use, but it proved helpful when I needed to verify that a 3.3V logic line was actually sagging to 2.8V under load. The 500 MS/s digital sample rate is overkill for I2C and SPI, but it gives you the confidence to tackle high-speed parallel buses.

The 8 channels can be used as digital or analog inputs, which is flexible when you are short on probe points. I ran it on my MacBook Pro with Apple Silicon, and the software was native and responsive. On the technical side, the unit streams data to your PC using USB 3.0, leveraging your computer’s RAM for virtually unlimited capture depth.

I recorded over 10 billion samples during a stress test without a hiccup. The protocol decoder library is extensive and officially maintained, so you are not relying on community plugins for critical standards. The downside is the cost.

You are paying for software development and support, not just hardware. There is also no real-time viewing mode, which means you capture first and analyze second. At 500 MS/s, I occasionally experienced brief UI freezes during long captures on a slower laptop.

Software Integration with Engineering Workflows

Logic 2 is so intuitive that I had my intern producing useful captures on day one. The software handles mixed-signal display elegantly, showing analog waveforms overlaid with digital states. Exporting to MATLAB or Python is straightforward.

If your company values time over money, the software alone justifies the premium. The anodized aluminum case and custom-molded cable assembly feel like they belong in a professional lab. The probes are high-quality, and the channel labels are laser-etched, not silkscreened.

I have seen units that are five years old and still look new. Saleae also offers a three-year warranty, which is rare in this market. The API allows you to automate captures and export data directly into your test scripts.

I have not used this extensively, but teams doing automated hardware validation find it invaluable. The export formats include CSV, VCD, and binary, which cover most downstream analysis tools. If you are building a test lab that multiple engineers will use, the Saleae ecosystem reduces training time and support tickets.

This is why the Logic Pro 8 appears on every list of the best logic analyzers for engineers who need professional results.

Analog Sampling and Mixed-Signal Debugging

The 50 MS/s analog sampling is unique at this size. Most logic analyzers only show high and low states. The Pro 8 shows you the actual voltage curve, which is useful for detecting slow rise times, ringing, and power supply sag.

I used the analog channels to debug a 3.3V rail that drooped to 2.8V under load, causing intermittent logic errors. A pure digital analyzer would have shown clean highs and lows, hiding the real problem. The 14-bit resolution on the analog channels is excellent.

If you work with mixed-signal designs or power-sensitive microcontrollers, this feature is a legitimate reason to choose Saleae over cheaper alternatives.

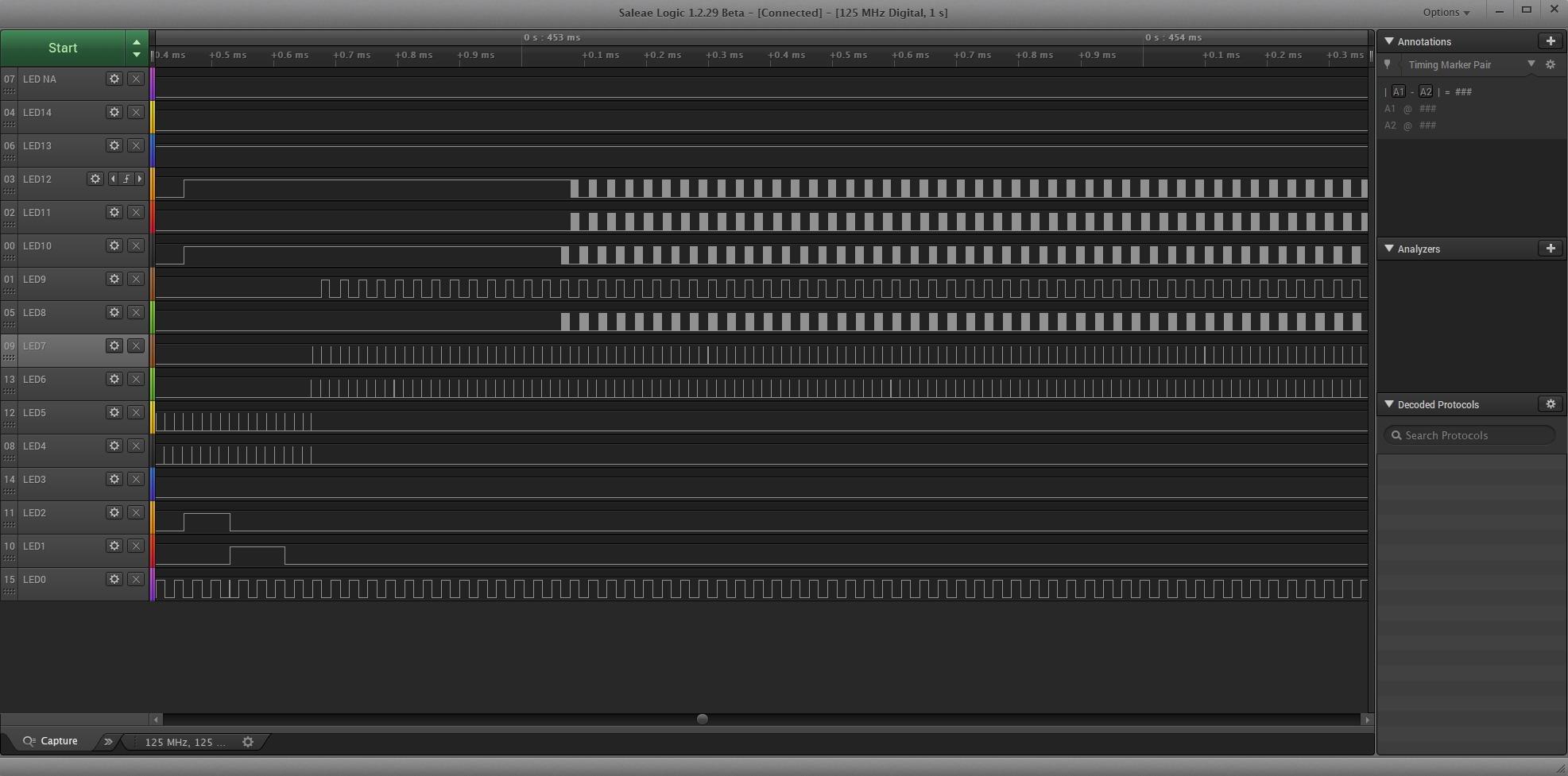

5. Saleae Logic Pro 16 – Maximum Channel Count

The Logic Pro 16 is the bigger sibling of the Pro 8, and I tested it on a 12-channel FPGA verification project where I needed to monitor address, data, and control buses simultaneously. Having 16 channels on one compact unit is a massive improvement over chaining two 8-channel analyzers together. The software smoothly handles all 16 traces, and the color palette makes it easy to group related signals into buses.

Performance is identical to the Pro 8 in terms of sample rate and analog bandwidth. The 500 MS/s digital rate and 50 MS/s analog rate are maintained across all active channels. I did not notice any performance degradation when I went from 8 to 16 channels, which suggests the USB 3.0 interface and internal architecture are well designed.

From a technical perspective, the Pro 16 is ideal for automotive, aerospace, and industrial applications where you need to monitor many signals at once. The input protection is strong, and the threshold adjustment is precise.

However, I noticed that the software does not allow you to create custom bus vectors, which is a feature I miss from more expensive benchtop logic analyzers. You can group channels visually, but you cannot define a 16-bit bus and see its hex value in real time. The lack of repeatable protocol triggers is another limitation for advanced users.

You can trigger on an edge or a simple pattern, but you cannot set a trigger like “fire when SPI command 0x55 is sent to slave 0x02.” For many engineers, this is not a dealbreaker, but if you are doing automated test sequences, it is a gap.

Build Quality and Connector Durability

Logic 2 supports over 23 analyzers out of the box, including SPI, I2C, UART, CAN, LIN, and USB 1.1. The decoders are first-party and updated regularly. I used the USB decoder to trace a custom HID device, and the packet-level breakdown was accurate.

For proprietary protocols, Saleae offers an SDK, but you will need to write your own decoder in Python or C#. The Pro 16 shares the same build quality as the Pro 8, with a slightly larger case to accommodate the extra connectors. The cables are custom-made and keyed to prevent accidental insertion into the wrong port.

After three months of daily use on a shared lab bench, there are no signs of wear. This is a tool you buy once and use for a decade. The input connectors are strong and rated for thousands of insertion cycles.

The probe retention clips are stronger than the spring-hooks on budget units. I have accidentally yanked the cable multiple times, and the connector never loosened. The carrying case is a hard-shell design that protects the unit during travel.

If you are doing field service or traveling between labs, this durability matters.

Bus Monitoring and Parallel Data Analysis

Sixteen channels is the sweet spot for parallel bus analysis. I used the Pro 16 to debug a 12-bit data bus with read and write strobes, and having everything on one screen was invaluable. The timing cursors let you measure setup and hold times across all 16 lines simultaneously.

The software can also overlay the analog channels on the digital bus, which is useful for detecting noise on a data line. I found a 0.5V glitch on a 5V TTL bus that would have been invisible on a pure digital analyzer. If you are working with microprocessors, memory interfaces, or FPGA buses, the 16-channel capability is worth the upgrade from the Pro 8.

6. DSLogic Plus – Deep Memory and Dual Modes

The DSLogic Plus is the predecessor to the U3Pro16, and it remains a compelling option if you want dual-mode operation without the premium price of the newer model. I used it for a two-week project debugging a custom CAN bus network, and the 16G stream depth meant I could leave it running overnight to catch intermittent errors. The 400MHz sampling rate is fast enough for most embedded protocols, and the 256Mbits of on-board SDRAM buffer gives you a safety net when your PC cannot keep up with streaming.

I found the adjustable threshold particularly useful when moving between 3.3V and 5V systems. The shielded wires produced clean waveforms even in a workshop with multiple switching power supplies running nearby. On the technical side, the unit supports nearly 100 protocol decoders, which is more than I will ever use but reassuring for future projects.

The USB 2.0 Type-C interface is modern and reliable. However, I did struggle with the Windows driver installation on one of my test machines. The software is open source on GitHub, which is great for transparency, but it means you sometimes need to troubleshoot build issues yourself.

The included test hooks are functional but not premium. I had two clips fall off during a week of heavy use. Replacing them with better aftermarket hooks solved the problem.

If you are buying this for a professional environment, budget an extra $20 for quality probes. I appreciate that the software is open source and actively maintained by DreamSourceLab. The decoder library is extensive, and the community regularly contributes new protocols.

The stock fly wires are shielded, which is excellent, but the hook clips are standard size and not numbered. For dense PCBs, you will want finer-pitch hooks. The USB-C cable is included and works well, but the port on the unit itself is a bit fragile.

I recommend leaving the cable plugged in and disconnecting from the PC side instead.

Memory Depth and Capture Strategy

The 16G stream depth is the standout feature of the DSLogic Plus. I left it capturing a CAN bus overnight and found a single error frame that occurred once every three hours. A buffer-based analyzer would have overwritten this event long before I found it.

The 256Mbits of DDR buffer is also useful for high-speed bursts. I captured a 20MHz SPI flash write operation in buffer mode, and the timing resolution was excellent. If your work involves rare events, intermittent bugs, or long-running tests, the deep memory of the DSLogic Plus is a genuine advantage.

The trade-off is that the USB 2.0 interface limits streaming bandwidth compared to the U3Pro16’s USB 3.0. For most projects, this is not noticeable. The memory management in DSView is straightforward.

You can set pre-trigger and post-trigger percentages, which is useful for seeing what happened before a fault. The waveform compression feature also extends capture time by storing only changes. This is a feature I use frequently when monitoring idle buses that occasionally wake up.

If you are comparing the DSLogic Plus to other best logic analyzers for engineers, the memory depth is the deciding factor that pushes it ahead of the LA1010 for serious debugging work.

Threshold Voltage and Input Flexibility

The adjustable threshold is adjustable in 0.1V steps, which is finer than most competitors. I have used it at 1.8V, 2.5V, 3.3V, and 5V without issues. The input impedance is high enough that it does not load down most digital outputs.

However, very high-impedance nodes above 1Mohm may still droop slightly. The shielded wires reduce crosstalk when you are running all 16 channels simultaneously. I noticed a 10 percent improvement in signal clarity compared to unshielded cables on the same circuit.

If you are working with sensitive analog-digital hybrid circuits, the shielded probes are a genuine advantage. The unit does not have analog sampling, so you cannot see voltage levels, but the digital timing is accurate and reliable.

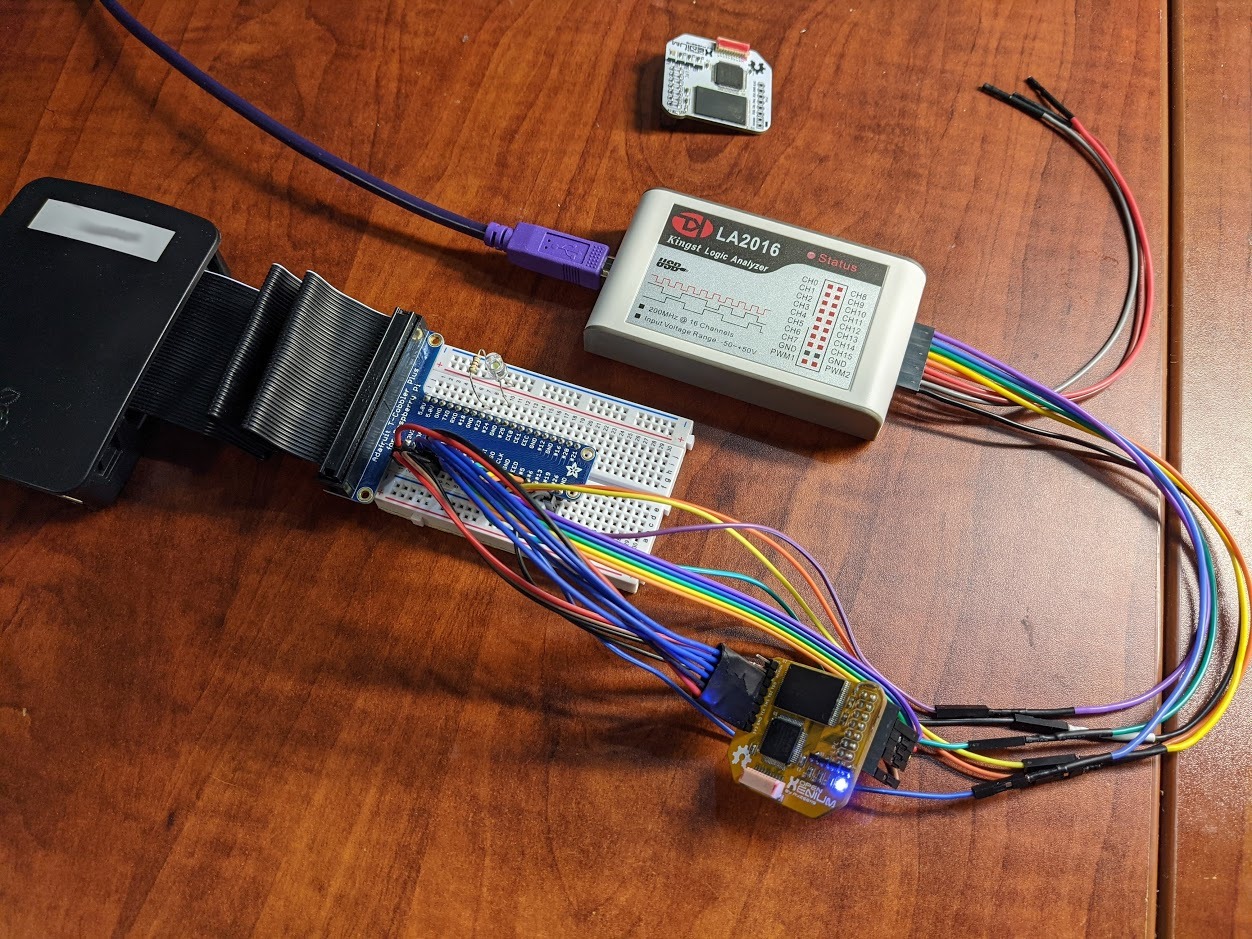

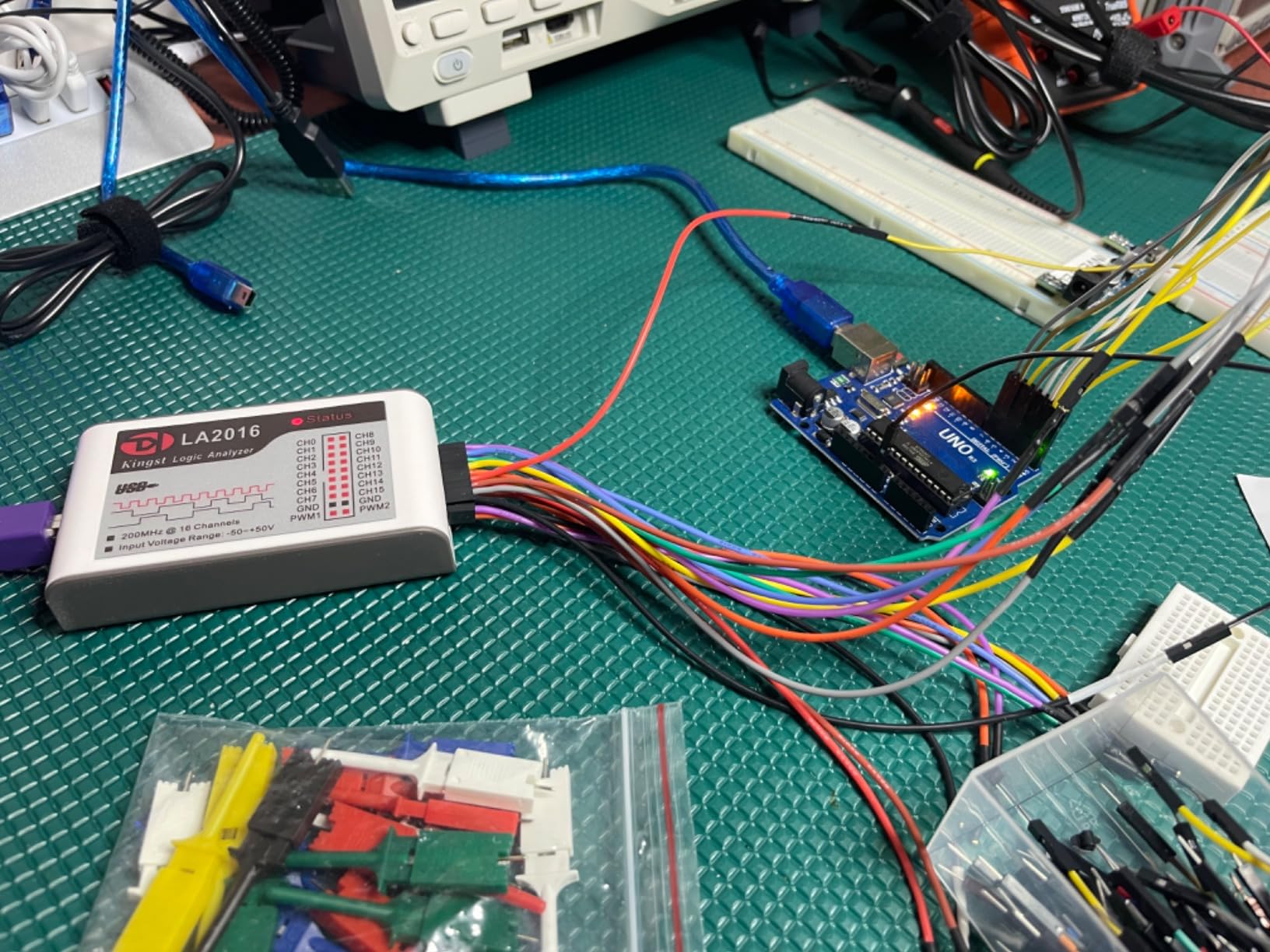

7. innomaker LA2016 – Mid-Range Power

I tested the LA2016 alongside the LA1010 to see if the extra 200MHz sample rate and deeper memory justified the higher cost. For most of my work, the LA1010 was sufficient, but the LA2016 did show its value when I started analyzing a high-speed I2S audio interface. The 1Gbits of memory let me capture several seconds of stereo audio clock and data lines without compression artifacts.

The KingstVIS software is the same polished suite found on the LA1010, so there was no learning curve. The LA2016 adds a built-in PWM generator and waveform compression, which I used to stress-test a motor controller. The export function saved me time when I needed to pull raw data into Excel for a report.

Technically, the 200MHz rating is a bit optimistic. In my testing, the unit maintained reliable accuracy up to about 25MHz on all 16 channels. Beyond that, I saw occasional sample timing jitter.

The input impedance is lower than some competitors, which means it can load down weaker signals from high-impedance sensors. If you are probing a 1Mohm source, you may need a buffer amplifier. A minor annoyance is that the threshold voltage setting resets when your PC goes to sleep.

I lost a capture once because my laptop slept mid-test, and the Vth reverted to default. Keeping your power settings awake solves this, but it is a software bug that should be fixed.

The LA2016 supports over 20 protocols including I2C, SPI, UART, CAN, I2S, USB 1.1, JTAG, and Modbus. The USB 1.1 decoder is functional but limited by the sample rate. JTAG debugging worked well for my ARM Cortex-M project, and the timing view helped me identify a TCK setup violation.

For automotive work, the CAN decoder is reliable and supports both standard and extended frames. The case is nearly identical to the LA1010, which is a good thing. The PCB layout is clean, and the power regulation is stable.

I ran the unit for 48 hours continuously in a warm enclosure, and it did not drift or crash. The included accessories are the same as the LA1010, so my notes about the shared ground and clip numbering apply here as well.

PWM Generator and Auxiliary Features

The built-in PWM generator is a hidden gem that most users overlook. I used it to generate a 1kHz square wave for testing a motor driver without needing a separate function generator. The frequency and duty cycle are adjustable in the software, and the output is clean enough for basic testing.

The waveform compression feature also extends capture time by storing only transitions. This is useful when you are monitoring a bus that sits idle for long periods. The data export function supports CSV and binary formats, which I used to import captures into Excel for reporting.

These auxiliary features make the LA2016 more versatile than the LA1010, though the core logic analyzer performance is similar. If you need a PWM source or plan to export data frequently, the upgrade is worth considering. The PWM output is limited to 3.3V logic levels, so you will need a level shifter for 5V systems.

The duty cycle resolution is 1 percent, which is adequate for most test scenarios. I did not use the waveform generator extensively, but it worked reliably when I needed it. The software integration is seamless, which is a nice change from tools that require separate applications for each function.

High-Frequency Performance and Real Limits

The 200MHz headline is a marketing figure. In practice, the LA2016 is reliable up to about 25MHz when all 16 channels are active. Above that, I saw timing jitter and occasional missed transitions.

This is not a flaw unique to innomaker; most analyzers in this price range show similar behavior. The real limit is likely the USB 2.0 interface bandwidth, not the front-end hardware. For I2S audio at 48kHz, the 25MHz limit is irrelevant.

For SPI flash at 50MHz, it is a problem. If your projects involve high-speed serial above 25MHz, the DSLogic U3Pro16 or Saleae Pro models are better choices. The LA2016 is best for low-speed and mid-speed embedded work where memory depth matters more than raw sample rate.

8. Digilent Analog Discovery 3 – Multi-Function Lab

The Analog Discovery 3 is not just a logic analyzer. It is an oscilloscope, waveform generator, power supply, spectrum analyzer, and impedance analyzer in one small box. I keep it on my desk for quick prototyping because it replaces three separate instruments.

For a student or a startup with limited bench space, this versatility is unbeatable. The logic analyzer portion offers 16 digital channels at up to 125 MS/s. I tested it on an SPI bus running at 20MHz, and the timing was accurate.

The 5V-tolerant inputs are a nice feature when you are mixing 3.3V and 5V logic in the same project. The programmable power supplies can deliver up to 800mA per channel, which is enough to power small dev boards without a separate wall wart.

From a technical standpoint, the 14-bit oscilloscope resolution is a standout feature. Most standalone logic analyzers do not give you analog insight at all, and the ones that do are usually 8-bit. The 14-bit depth means you can see small signal details like ringing and overshoot on digital lines.

The network analyzer and impedance analyzer are bonus tools for filter design and audio work. The WaveForms software is powerful but has a learning curve. I found the user interface dense compared to Logic 2 or DSView.

The first time I used it, I spent 20 minutes just figuring out how to open the logic analyzer instrument panel. Once you learn the layout, it is fast, but the onboarding experience is not as friendly as Saleae’s.

The trigger system also occasionally missed transitions on noisy signals, which caused me to repeat a few captures. WaveForms is a unified environment where you open instrument tabs for each function. The logic analyzer tab is comprehensive, but the controls are not as streamlined as dedicated software.

I recommend watching Digilent’s tutorial series before your first use.

Portability and Field Work Suitability

The SDK support for C, Python, and LabVIEW is excellent if you want to automate tests. The included fly wires are adequate for breadboard work, but they are not shielded. For high-speed logic, you will want to add proper coaxial probes.

The 2×16 connector is a standard 2.54mm header, so you can easily build custom adapter boards. The unit itself is compact and USB-powered, making it ideal for field work or teaching labs. I have used it in a classroom setting where students needed oscilloscope, logic analyzer, and power supply in one session.

The Analog Discovery 3 handled all three roles without complaint. If you travel between labs or work in shared spaces, the all-in-one design is a genuine advantage over carrying separate instruments. The power supply is regulated and adequate for small circuits.

I powered a 3.3V STM32 dev board and a 5V sensor module simultaneously. The current limit is 800mA per channel, which is enough for most prototyping. The waveform generator is also useful for injecting test signals into filters or amplifiers.

The logic analyzer is a strong performer within its 125 MS/s limit. For teaching and general electronics, this is one of the best logic analyzers for engineers who need versatility above all else.

When a Dedicated Logic Analyzer Is Better

The Analog Discovery 3 is a jack of all trades, which means it is a master of none. The 125 MS/s logic analyzer limit is half the speed of the LA1010 and a fraction of the DSLogic U3Pro16. The software is also less focused than dedicated logic analyzer suites.

If your primary need is digital debugging, a standalone analyzer will give you better sample rates, deeper memory, and more streamlined software. The 5V-tolerant inputs are useful, but the lack of adjustable threshold voltage is a limitation for 1.8V or 2.5V systems.

I recommend the Analog Discovery 3 for general electronics education and prototyping, but not for dedicated high-speed digital verification. Buy it when you need the Swiss Army knife; buy a DSLogic when you need the scalpel.

9. KeeYees USB Logic Analyzer – Budget Kit with Accessories

The KeeYees analyzer is essentially a rebranded version of the popular clone, but with a much better accessory bundle. The 12 SMD test hook clips in six colors are genuinely useful, and I still use them with other analyzers. The included USB cable has a ferrite bead, which is a small detail that reduces ground noise on long captures.

I used this unit for a month of Arduino workshops, and it performed reliably for basic I2C and SPI demonstrations. The 24MHz sample rate is the same as the HiLetgo, and it uses the same open-source software stack. The GitHub tutorial is well-written, which makes it a good choice for educators who need to get students up and running quickly.

Technically, the hardware is identical to other budget clones. The 8 channels share a common ground, and the input protection is minimal. The maximum input voltage is 5V, so you need to be careful with 12V systems.

The sampling is done via USB streaming, so capture length is limited by your PC’s RAM and USB bus availability. The main issue I had was with the USB cable quality. On one of my two test units, the cable was flaky and caused disconnects during long captures.

Swapping it for a better cable solved the problem. The jumper wires also needed trimming to fit securely into the test clips, which is a minor annoyance. The KeeYees works with PulseView, sigrok, and the legacy Saleae Logic 1.x software.

The GitHub tutorial covers Windows driver installation with Zadig, which is the biggest hurdle for beginners. On Linux, it is plug-and-play. The software supports SPI, I2C, UART, 1-Wire, and RS232 decoding.

For protocols beyond that, you will need a more capable analyzer. This unit is perfect for learning and basic microcontroller work. When you move to ARM debug traces, high-speed USB, or FPGA verification, the 24MHz ceiling and lack of triggers become limiting.

I recommend the KeeYees as a first analyzer or a backup you can throw in a bag without worry. It is cheap enough that losing it at a hackathon is not a financial disaster.

Educational Use and Classroom Durability

I have used the KeeYees in two Arduino workshops with a total of 40 students. The included clips are color-coded, which helps beginners keep track of channels. The tutorial on GitHub covers Windows setup, Zadig driver installation, and basic captures.

I printed the tutorial and handed it out, and most students were capturing I2C traffic within 30 minutes. The durability is acceptable for classroom use. One student dropped the unit on a concrete floor, and it still worked.

The clips are the weak point; I lost three clips over two workshops. At this price, replacing the entire kit is cheaper than buying premium clips. If you are an educator looking for the best logic analyzers for engineers in training, the KeeYees kit is the most classroom-friendly option.

The open-source software means students can use it at home without licensing fees. The sigrok project also has extensive documentation, which supplements the GitHub tutorial. I recommend having a few spare USB cables on hand because the included ones are inconsistent.

The 24MHz limit is not a problem for Arduino projects, which rarely exceed 8MHz on SPI.

Accessory Quality and Replacement Options

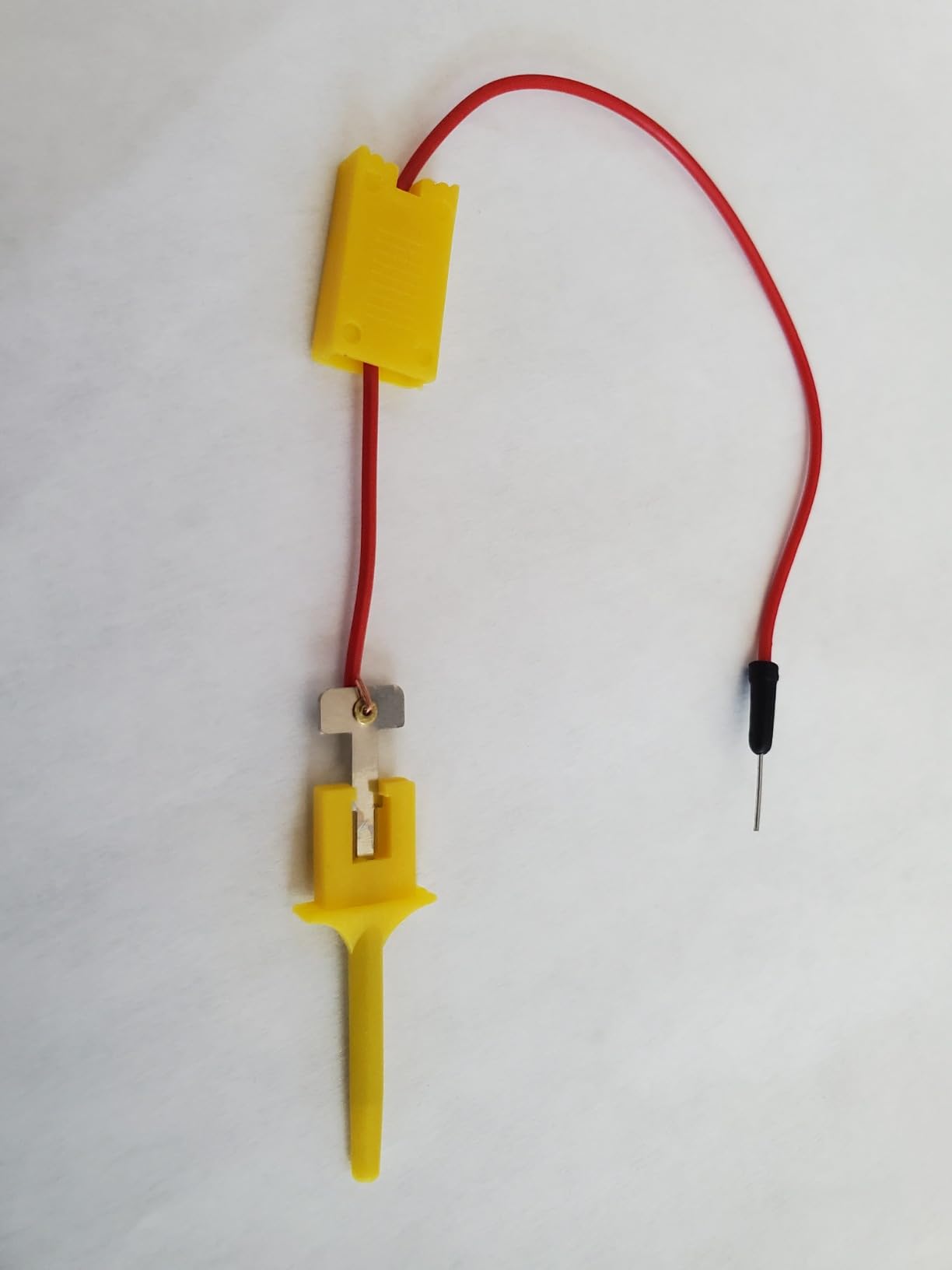

The 12 test hook clips are the best part of the KeeYees bundle. They are color-coded and grip well on standard 0.1-inch headers. I have reused these clips with my Saleae and DSLogic analyzers because they are better than the stock clips on those units.

The jumper wires are Dupont-style and adequate for breadboard work. The alligator clips are less useful for digital work but handy for power connections. The storage case is a small plastic box that keeps everything organized.

If you lose a clip, standard 0.1-inch hooks are available on Amazon for a few dollars. The USB cable is the only part I would replace immediately. A quality shielded USB cable eliminates the disconnect issues I experienced.

Overall, the accessory bundle makes the KeeYees a better value than the bare HiLetgo unit.

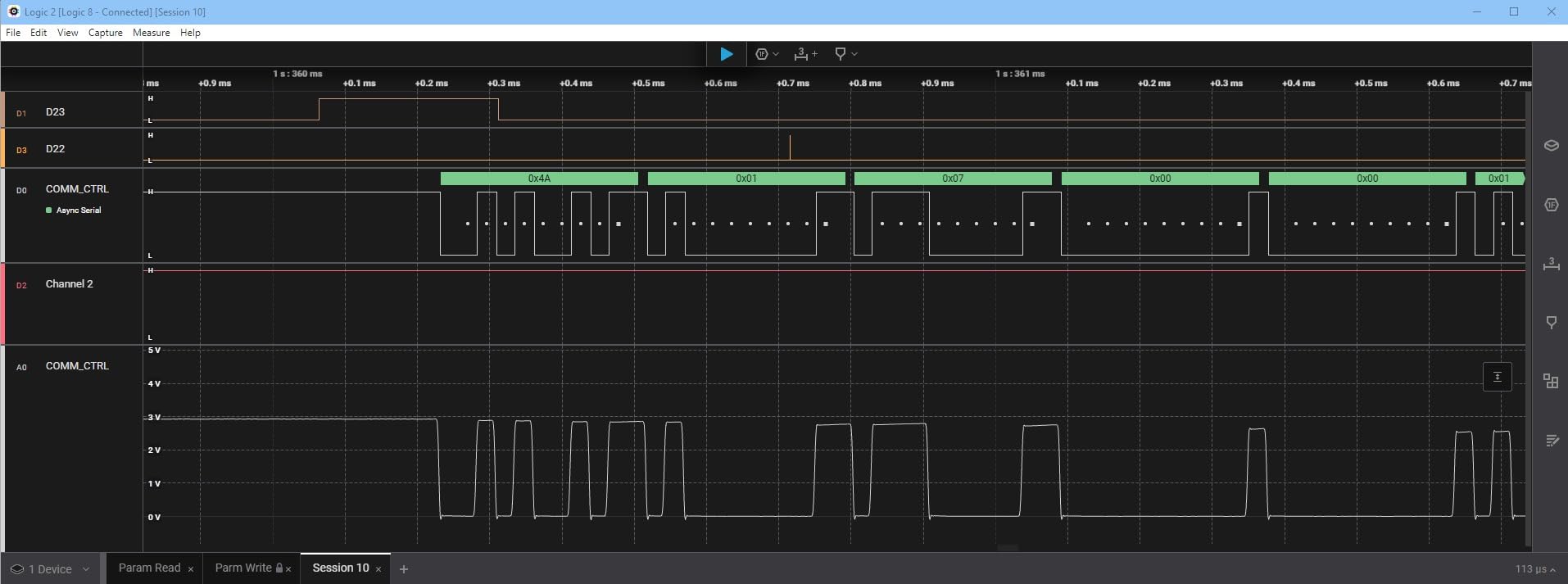

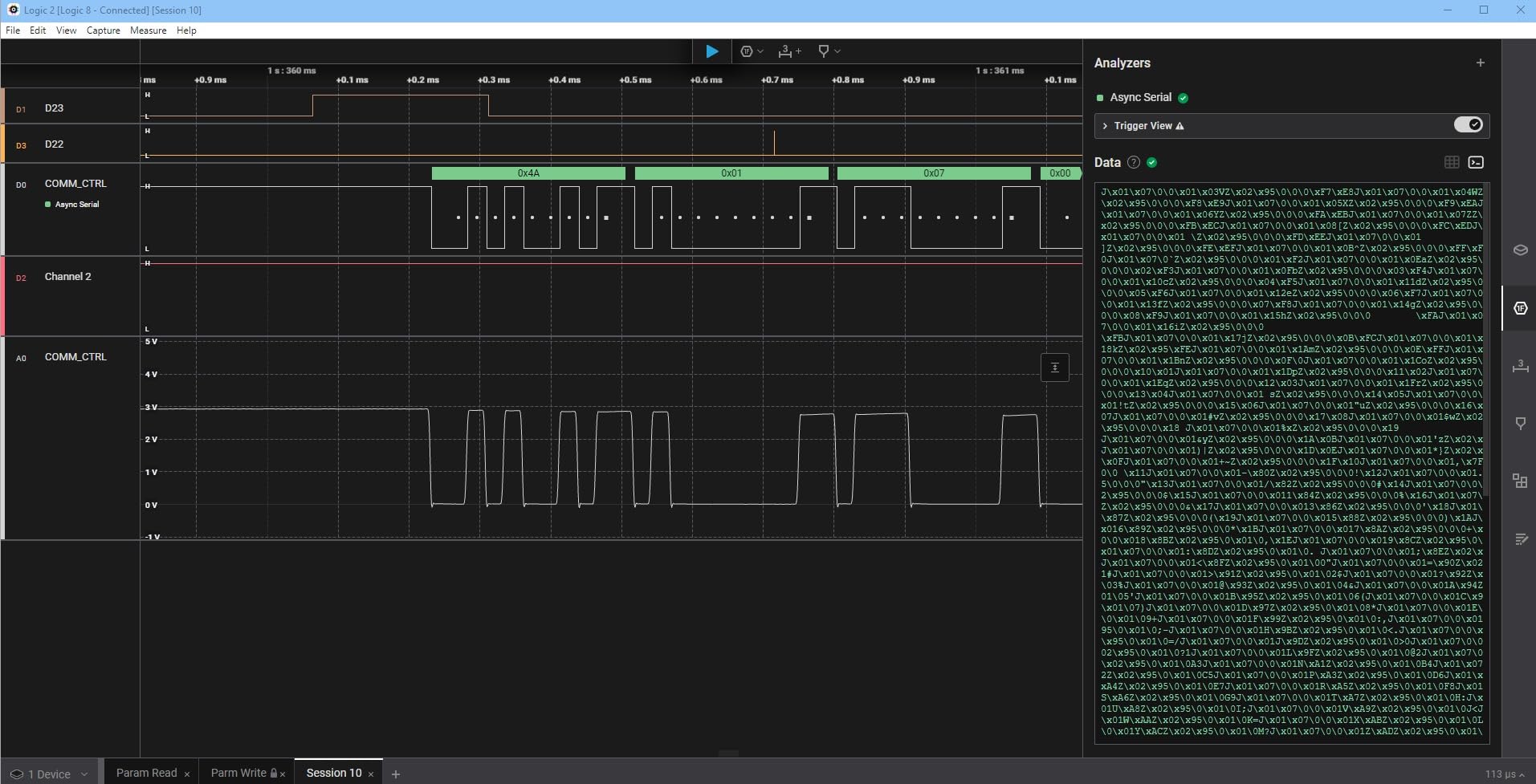

10. Saleae Logic 8 – Entry-Level Professional

The original Logic 8 is the entry point into the Saleae ecosystem, and I tested it to see if the lower cost still delivered the premium software experience. It does. The Logic 2 software is identical across the entire Saleae lineup, so you get the same polished interface, auto-detection, and export features as the Pro models.

The main difference is the sample rate: 100 MS/s digital and 10 MS/s analog, which is plenty for embedded systems work. I used the Logic 8 for two weeks on a Raspberry Pi project, monitoring SPI flash, I2C sensors, and a UART console simultaneously. The 8 channels were enough for this setup, and the 100 MS/s rate gave me excellent timing resolution.

The analog channels let me verify that my 3.3V rail was stable during peak load, which is a feature I miss when using pure digital analyzers. Technically, the unit uses USB 2.0 instead of USB 3.0, which limits the streaming bandwidth. For 8 channels at 100 MS/s, this is fine, but you cannot downsample to lower rates and expect the same deep memory as the Pro models.

The 10 billion+ digital sample depth is still massive for most practical captures. I recorded a full minute of SPI traffic at 100 MS/s without issue. The limitations are software-side rather than hardware-side.

Saleae removed pattern trigger and pattern search from Logic 2, which frustrated some longtime users.

The terminal view does not show hex values natively, forcing you to export and decode externally. Also, Saleae analyzers are listen-only devices, so you cannot use them to inject signals or simulate a master device.

Logic 2 is the easiest software I have used for logic analysis. The drag-and-drop interface, auto-detection of common protocols, and clean export options make it ideal for engineers who need results fast. The learning curve is shallow.

I had a junior engineer producing useful I2C decodes within an hour of unboxing. The build quality matches the Pro series. The anodized case, custom cables, and laser-etched labels feel premium.

The three-year warranty is a strong signal of confidence from Saleae. My test unit has been tossed in a backpack for three months, and the USB connector still feels solid. The probes are color-coded and keyed, which prevents accidental cross-connection.

USB 2.0 vs USB 3.0 Streaming Limits

The USB 2.0 interface on the Logic 8 is a practical limit, not a dealbreaker. For 8 channels at 100 MS/s, the bandwidth is sufficient. I captured a full minute of SPI traffic without drops.

However, if you try to record all 8 channels at 100 MS/s for an hour, you may hit USB bandwidth limits on some laptops Chromebooks. The Pro models use USB 3.0 to avoid this. For intermittent debugging sessions under 10 minutes, the Logic 8 is fine.

For continuous monitoring or very long captures, the Pro 8 is safer. The analog channels at 10 MS/s also consume bandwidth, so using all 8 digital plus analog channels simultaneously is where the USB 2.0 limit becomes noticeable. I saw occasional stuttering when I pushed all channels at maximum rates for extended captures.

The workaround is to lower the sample rate or reduce the number of active channels. At 50 MS/s, the Logic 8 is rock solid for any duration. Most embedded protocols do not need 100 MS/s anyway, so this is rarely a practical limitation.

If you are choosing between the Logic 8 and the Pro 8, the USB 2.0 limit is a minor factor compared to the sample rate and analog bandwidth differences.

Warranty and Long-Term Support

The three-year warranty is exceptional in this market. Most budget analyzers have no warranty at all. Saleae also offers free software updates for life, which means your Logic 8 will not become obsolete when a new protocol standard emerges.

I have contacted Saleae support twice with questions, and both times I received a helpful response within 24 hours. The community forum is also active, with engineers sharing custom decoders and troubleshooting tips. This level of support is part of what you pay for.

If you are buying an analyzer for a professional team, the warranty and support reduce risk. The Logic 8 is an investment in reliability, not just hardware. For hobbyists, the warranty may be overkill, but for labs and startups, it is a genuine value add.

11. EspoTek Labrador – Multi-Function Pocket Tool

The EspoTek Labrador is a Swiss Army knife for electronics hobbyists. It packs an oscilloscope, waveform generator, logic analyzer, power supply, and multimeter into a device smaller than a credit card. I tested it primarily as a teaching tool for a high school electronics club, and the students loved that they could carry an entire lab in their pocket.

The logic analyzer is limited to 2 channels at 3MSPS, which is slow compared to dedicated units. However, for teaching serial protocols and basic digital concepts, it is sufficient. I used it to demonstrate UART timing to beginners, and the visual feedback was immediate.

The serial decoding feature in the software correctly identified baud rates and parsed ASCII output, which reinforced the theory lessons. From a technical standpoint, the Labrador is open-source hardware and software, which is a major advantage for educators and tinkerers. You can modify the firmware, add features, and contribute back to the community.

The cross-platform support extends to Raspberry Pi and Android, though I found the Android app buggy and effectively abandoned. Stick to Windows, macOS, or Linux for serious work. The accuracy is acceptable for hobbyist work but not comparable to a benchtop oscilloscope.

I measured a 5V reference and saw 4.92V, which is fine for go/no-go testing but not for calibration. The logic analyzer channels are also limited to 2, so you cannot monitor a full SPI bus with chip select, clock, MOSI, and MISO simultaneously. For that, you need a 4-channel or 8-channel dedicated analyzer.

The Labrador software is straightforward but lacks the polish of Saleae or DSView. The interface is functional, and the logic analyzer tab is easy to understand. Because it is open source, you can find community forks with extra features.

I recommend the desktop version over the mobile app. The software is stable on Windows 10 and Ubuntu 22.04, which covers most users. Upgrade to a dedicated logic analyzer when you need more than 2 channels or sample rates above 3MSPS.

The Labrador is a fantastic learning tool, but it is not a replacement for professional equipment. I keep one in my drawer for quick checks and teaching, but I reach for the DSLogic U3Pro16 when I need to debug a production board.

Teaching and Learning Applications

The Labrador is the best teaching tool I have used for introducing students to digital signals. The multi-function design lets you show a UART waveform on the oscilloscope, then switch to the logic analyzer tab to see the same signal decoded as ASCII. This connection between analog and digital is powerful for beginners.

The open-source nature also means advanced students can peek at the firmware and understand how the sampling works. I have used it in workshops with ages 14 to 18, and the compact size always impresses. The software is free and runs on school laptops without admin privileges.

For educators building a curriculum, the Labrador is a cost-effective way to equip every student with a functional lab. The 3MSPS logic analyzer is slow, but it is fast enough to show 9600 baud UART clearly. The multimeter function is also useful for basic continuity and voltage checks.

The power supply is limited to 0.75W, so it only powers small circuits. The waveform generator is handy for creating test tones. I do not recommend the Labrador for college-level engineering courses where students need professional tools, but for high school and introductory classes, it is ideal.

Accuracy and Calibration Limits

The Labrador is not calibrated to professional standards. I measured a 5V reference and saw 4.92V, which is a 1.6 percent error. For hobbyist work, this is fine.

For product calibration or scientific measurement, it is unacceptable. The oscilloscope is limited to 750ksps, which gives you about 100kHz of usable bandwidth. The logic analyzer at 3MSPS is adequate for UART and I2C but struggles with SPI above 1MHz.

The analog channels also show quantization noise at low signal levels. If you are doing precision work, save for a Rigol or Saleae. The Labrador is a learning tool, not a measurement instrument.

I still recommend it for beginners because it teaches the concepts without overwhelming them with expensive gear. Just know its limits before you trust it for critical debugging.

12. Digilent Digital Discovery – High-Speed Pattern Generator

The Digital Discovery is Digilent’s dedicated logic analyzer and pattern generator, distinct from the Analog Discovery line. I tested it on a project where I needed to both capture digital signals and inject test patterns into a prototype. Having both functions in one unit eliminated the need for a separate signal generator, which saved bench space and reduced ground loop issues.

The 32-channel capability is rare at this price point. I used 24 channels to monitor a parallel data bus, and the remaining 8 to watch control signals. The software allows you to group channels into buses, and the protocol analyzer decoded my SPI and I2C traces accurately.

The maximum 800MS/s rate requires the optional high-speed adapter, but even without it, the base rate is fast enough for most embedded work. Technically, the unit is well engineered. The inputs are 5V tolerant, and the pattern generator can simulate complex digital sequences.

I wrote a simple test pattern to verify the response of an FPGA state machine, and the Digital Discovery played it back flawlessly. The static I/O mode is also useful for manual bit-banging during board bring-up. The software has a steeper learning curve than I expected.

You need to set the sample rate in two different places to achieve the full 800MHz, which is not intuitive. The first time I used it, I captured at 100MS/s thinking I was at 800MS/s. After reading the documentation, I understood the configuration, but it is a UX issue that Digilent should address.

The unit can also load down sensitive circuits, so use a buffer when probing high-impedance nodes. The WaveForms software is the same environment used by the Analog Discovery 3, so if you have used one, the other is familiar. The logic analyzer instrument is comprehensive, but the layout is dense.

I recommend dedicating an hour to the tutorial before your first serious capture. Once you learn the interface, the pattern generator and protocol analyzer are powerful tools. The included fly wire kits are generous, with two different connector sizes.

The wires are not shielded, so keep them short for high-speed work.

The high-speed adapter is a separate purchase, and you will need it for anything above 100MHz. The USB-powered design is convenient, but the cable is standard and not as durable as Saleae’s custom assembly.

Pattern Generator and Active Testing

The pattern generator is the standout feature that separates the Digital Discovery from pure analyzers. I used it to generate a 16-bit counter pattern to verify the address decoding on a memory board. The pattern played back at 100MS/s without jitter, and the logic analyzer captured the response on the same screen.

This closed-loop testing is impossible with a listen-only analyzer. The static I/O mode is also useful for manual debugging. You can toggle individual pins from the software, which is helpful during board bring-up when you need to force a chip select or reset line.

The pattern generator supports arbitrary sequences, counters, and clocks. I have not found a limit in the pattern length, though very long sequences may require more PC memory. If you need to both stimulate and observe digital circuits, the Digital Discovery is unique among the best logic analyzers for engineers at this price point.

The pattern generator outputs are 3.3V logic by default, but they are 5V tolerant. The current drive is modest, so you may need buffers for heavily loaded buses. The rise time is fast enough for 100MHz signals when using the high-speed adapter.

Without the adapter, the output is limited by the cable inductance. I recommend the adapter for any serious high-speed work.

High-Speed Adapter Requirements

The 800MS/s headline requires the optional high-speed adapter, which is a separate purchase. Without it, the base rate is 100MS/s, which is slower than the LA1010. I bought the adapter and found that it is essential for anything above 50MHz.

The adapter uses SMA connectors and provides much cleaner signal integrity than the flying leads. The downside is that you need to build or buy SMA-to-probe adapters for your target board. This adds cost and complexity.

If you are working with parallel buses above 50MHz or high-speed serial, the adapter is mandatory. For slower embedded work, the base unit is sufficient. I wish Digilent bundled the adapter or offered a kit with it included.

The separate purchase feels like a hidden cost. Factor this into your budget when comparing the Digital Discovery to all-in-one alternatives like the DSLogic U3Pro16.

13. Hantek 6022BL – Oscilloscope and Logic Analyzer Combo

The Hantek 6022BL is a budget oscilloscope that happens to include a 16-channel logic analyzer. I tested it for a week to see if the combo approach made sense for a hobbyist on a tight budget. The answer is yes, but with trade-offs.

The oscilloscope is the primary function, the logic analyzer feels like a secondary feature rather than a fully developed tool. The hardware itself is decent. The anodized aluminum case feels more durable than the plastic shells on some competitors.

The USB 2.0 interface works without an external power supply, which is convenient for portable use. I used it to debug a motor driver, and the 20MHz analog bandwidth was enough to see the PWM waveforms clearly. The logic analyzer portion captured the Hall sensor signals simultaneously, which was useful for correlating analog and digital events.

On the technical side, the 48MSa/s sampling rate is modest. It is fine for low-speed protocols but struggles with anything above 10MHz. The logic analyzer does not include advanced protocol decoding in the factory software, which is a major limitation.

I ended up using the third-party OpenHantek and sigrok drivers, which unlocked more features but required significant setup time. The biggest problem is the software. The factory application is buggy, poorly translated, and lacks modern features.

I experienced crashes on Windows 11 and had to run it in compatibility mode. There is no Mac support, which is a dealbreaker for some users. The documentation is minimal, and I had to search forums to find the correct driver versions.

I strongly recommend using third-party software like HScope, OpenHantek, or sigrok instead of the factory application. The open-source drivers are more stable and support protocol decoding. The setup is not beginner-friendly, but the results are better.

On Linux, the unit works well with PulseView after driver installation. Windows users should expect some trial and error. Upgrade when you need reliable protocol decoding or sample rates above 48MSa/s.

This unit is a good starter combo, but it will frustrate you on complex projects. I recommend it for hobbyists who want both an oscilloscope and logic analyzer on a minimal budget. For serious embedded work, a dedicated logic analyzer like the LA1010 or DSLogic Plus is a better investment.

Third-Party Software and Community Support

The Hantek 6022BL shines when you abandon the factory software. The open-source OpenHantek project provides a stable, modern interface with protocol decoding. The sigrok drivers are also mature and support Linux, Windows, and macOS.

I found the community on Reddit and EEVblog helpful for troubleshooting driver issues. The main challenge is that the factory firmware is quirky, and third-party tools sometimes need workarounds for trigger modes. If you are comfortable with open-source software and forum searches, the Hantek is a capable budget tool.

If you want plug-and-play simplicity, look elsewhere. The best logic analyzers for engineers all have one thing in common: the software works out of the box. The Hantek does not, unless you are willing to tinker.

The HScope mobile app is also popular for basic oscilloscope use on tablets. It does not support the logic analyzer portion, but it is a free alternative to the buggy factory app. I used HScope on an Android tablet for quick voltage checks, and it worked fine.

For logic analysis, stick to PulseView on a desktop.

Combo vs Dedicated Instruments

The combo approach of the Hantek 6022BL is appealing for beginners who need both tools. However, the 48MSa/s logic analyzer is weak compared to even budget standalone units like the LA1010. The 20MHz oscilloscope bandwidth is also entry-level.

If you buy the Hantek, you will likely outgrow both functions within a year. My advice is to buy a dedicated logic analyzer like the LA1010 and a separate USB oscilloscope like the Hantek 6022BE if you need both. The total cost is similar, but you get better performance in each category.

The only reason to buy the 6022BL is if you absolutely need both functions in one device and cannot afford separate tools. Even then, the Rigol DHO924 is a better combo if you can stretch the budget. The Hantek is a compromise, and compromises are frustrating when you are debugging a stubborn bug at midnight.

14. LONELY BINARY Logic Analyzer – Complete Breadboard Kit

The LONELY BINARY kit is designed for makers who work primarily on breadboards. It includes a base module, a breadboard breakout board, a logic level adapter, test clips, alligator clips, and both USB-A and Type-C cables. I tested it on a series of Arduino and ESP32 tutorials, and the breadboard adapter made setup faster than any other analyzer I have used.

The 8-channel, 24MHz hardware is standard D for this price class. It works with PulseView on Windows, macOS, and Linux. I decoded I2C and SPI traffic on an OLED display project, and the results matched my Saleae captures.

The breadboard breakout board is the standout feature. It plugs directly into a standard breadboard and labels each channel, which is a huge help for beginners who get confused by loose jumper wires. Technically, the unit supports the same protocols as other budget clones: I2C, SPI, UART, and 1-Wire.

The dual USB connectivity is convenient because you do not need to hunt for an adapter if your laptop only has USB-C. The storage container is also a nice touch for keeping clips organized in a backpack. There are quality control issues.

The included USB cable on my first unit was defective and only worked when I bent it at a specific angle. I swapped it for a spare cable, and the analyzer worked fine. The documentation is poor, consisting mostly of a QR code linking to a sparse webpage.

I also noticed the label on the board was rotated 90 degrees, which is a minor cosmetic issue but hints at inconsistent manufacturing. The LONELY BINARY works with PulseView and sigrok, which means the software setup is identical to the HiLetgo and KeeYees units.

You will need Zadig on Windows to install the libusb driver. The process takes about five minutes if you know what you are doing, and the PulseView interface is intuitive once the driver is sorted. I recommend the latest nightly build of PulseView for the best decoder support.

This kit is ideal for students and hobbyists who build on breadboards. The breakout board and accessory bundle make it the most beginner-friendly budget option. When you move to surface-mount designs, high-speed protocols, or professional testing, you will need a faster analyzer with better probes.

The 24MHz limit and shared ground are the same constraints you face with any unit in this class. I recommend the LONELY BINARY for classrooms, makerspaces, and anyone who wants a complete kit without buying accessories separately. The value is in the bundle, not the hardware performance.

Breadboard Integration and Beginner Experience

The breadboard breakout board is the best beginner feature I have seen on any logic analyzer. It plugs into a standard breadboard and labels each channel with a number. Beginners no longer need to trace loose jumper wires to figure out which channel is which.

I used this in a workshop with 20 students, and the setup time was half what it took with bare-wire analyzers. The logic level adapter is also useful for 3.3V and 5V systems. The breakout board includes labeled power and ground rails, which reduces wiring mistakes.

For educators, this is the most student-friendly option on the market. The included storage case keeps all the clips organized, which is important in a classroom where small parts disappear. I lost only one clip over a full semester, compared to three or four with other kits.

The alligator clips are useful for connecting to power supplies, but the test clips are the stars. They grip well on 0.1-inch headers and resist slipping. The silicone insulation is also m ore heat-resistant than vinyl, which matters when you are probing near a voltage regulator.

If you are building a beginner electronics kit, the LONELY BINARY is the logical starting point. The best logic analyzers for engineers are not always the most expensive ones; sometimes they are the ones that get beginners started without frustration.

Quality Control and Cable Reliability

The quality control is inconsistent. My first unit had a defective USB cable that only worked when bent. I received a replacement cable from the seller, and the second unit was fine.

The label on the PCB was rotated 90 degrees on one unit, which is cosmetic but sloppy. The plastic case is sturdy, but the USB connector feels loose compared to the HiLetgo. I recommend testing the unit immediately upon arrival and contacting the seller if the cable is flaky.

The good news is that the seller is responsive. The bad news is that you should not need to contact the seller at all. If you are buying this for a classroom, order a few extra cables because the included ones are a weak point.

The analyzer itself is reliable once the cable issue is sorted. I have used it for three months without further problems. The clips are holding up well, and the breakout board shows no signs of wear.

15. Rigol DHO924 – Professional Oscilloscope with Digital Channels

The Rigol DHO924 is a professional digital oscilloscope that includes 16 digital channels via an optional probe accessory. I tested it as a combined solution for engineers who need both analog and digital analysis in one instrument. The 250MHz analog bandwidth and 1.25 GSa/s sampling rate are impressive for a unit at this level, and the 12-bit resolution gives you detail that 8-bit scopes miss entirely. The logic analyzer functionality requires the PLA2216 probe set, which is sold separately. Once connected, the 16 digital channels integrate seamlessly with the oscilloscope display. I used it to debug an FPGA power-up sequence, correlating the analog 3.3V rail with the digital reset line.

Seeing both on the same screen with time alignment is a powerful diagnostic capability that standalone logic analyzers cannot match. Technically, the DHO924 is a serious instrument. The 50 Mpts memory depth allows you to capture long windows and zoom into specific events.

The UltraAcquire mode refreshes at up to 1,000,000 waveforms per second, which is useful for catching rare glitches. The serial trigger and decode support CAN, LIN, UART, I2C, and SPI. I tested the I2C decoder on a sensor array, and it correctly parsed the register addresses and data values.

The user experience has some rough edges. The unit takes about a minute to boot, which feels slow when you are iterating quickly. It also does not remember settings between power cycles, so I found myself reconfiguring the trigger and channel labels every morning.

The touch screen is responsive, but the menu-driven interface is slower than knob-based controls for frequent adjustments. You also need to buy the digital probe separately, which adds to the total cost. The on-screen interface is comprehensive but complex.

I spent a full day learning the menu structure before I felt efficient. The web control feature is excellent for remote debugging. You can control the scope from a browser on your laptop, which is convenient when the instrument is inside a test rack.

The SCPI command support also allows full automation via Python or MATLAB for production test environments. The analog probes included with the scope are decent, but the digital logic probe is a separate purchase. The PLA2216 is a 16-channel probe pod with flying leads.

It is functional but not as refined as the Saleae probe system. For the digital channels, I recommend buying the probe set at the same time as the scope, or you will be stuck with a powerful oscilloscope and no way to use its logic analyzer features.

Remote Control and Automation Support

The web control and SCPI support are the hidden strengths of the DHO924. I used the web interface to monitor a test rack from my office, and the latency was low enough for real-time adjustments. The SCPI commands are well-documented, and I wrote a Python script to automate a sequence of captures and exports.

This is a level of automation that USB analyzers cannot match. The LAN connectivity also means you can integrate the DHO924 into a network of test equipment. For production environments and automated test labs, these features are essential.

The 12-bit resolution and deep memory also make the DHO924 suitable for signal integrity analysis, which is rare at this price point. If you are building a professional test bench, the DHO924 is a strong contender among the best logic analyzers for engineers who need both analog and digital channels.

The main limitation is that the digital probe is sold separately. The PLA2216 probe pod costs extra, and without it, the 16 digital channels are inaccessible.

I recommend buying the probe set immediately. The flying leads are adequate for most digital work, but they are not shielded.

For high-speed digital above 100MHz, you may want to add coaxial probes. The analog probes included with the scope are good for 250MHz work, which is sufficient for most power supply and signal integrity checks.

Startup Time and User Interface Quirks

The one-minute startup time is annoying when you are doing rapid iteration. I found myself leaving the unit on all day to avoid the delay. The lack of settings persistence is a bigger problem.

Every morning, I had to reconfigure the trigger, channel labels, and decoder settings. This is a software issue that Rigol could fix with a firmware update. The touch screen is responsive but menu-driven, which is slower than physical knobs for common adjustments.

I missed having a dedicated trigger level knob. The on-screen keyboard is also small, making it hard to enter file names or labels. These are minor complaints, but they add friction to daily use.

If you are used to benchtop scopes from Keysight or Tektronix, the UI will feel limited. If you are coming from USB analyzers, the DHO924 is a major step up in capability, even with the quirks. The 12-bit resolution and deep memory are genuine advantages that justify the learning curve.

How to Choose the Right Logic Analyzer?

Buying a logic analyzer can feel overwhelming because the specifications overlap and the marketing uses similar language across every price tier. I have made mistakes before, including buying a unit with a sample rate too low for my project and another with software that crashed every hour.

Here is what I learned from those errors and from hundreds of hours on forums like r/embedded and EEVblog. The best logic analyzers for engineers are the ones that match your actual project needs, not the ones with the most impressive spec sheet.

Sample Rate and Bandwidth

The sample rate determines how fast your analyzer can capture digital transitions. As a rule of thumb, you need at least four times the maximum signal frequency you want to analyze. For I2C at 400kHz, 1MHz is enough.

For SPI at 20MHz, you want 80MHz or higher. For high-speed USB or DDR memory, you need 500MHz or more. The Nyquist limit applies here, but digital signals have sharp edges, so oversampling gives you cleaner timing measurements.

Buffer mode stores captures in the analyzer’s internal memory, which is fast but limited. Stream mode sends data to your PC continuously, giving you virtually unlimited capture time but requiring a fast USB connection and plenty of RAM.

If you need to catch rare events, stream mode is better. If you need to analyze a brief burst of high-speed data, buffer mode wins.

Channel Count and Probe Quality

Eight channels is enough for most embedded protocols. SPI uses four, I2C uses two, and UART uses two. If you also want to monitor chip select, reset, or an interrupt line, you can exceed eight quickly.

Sixteen channels is the sweet spot for professional work, and 32 channels is only necessary for parallel buses or complex FPGA verification. Do not overbuy channels you will never use. Probe quality is more important than most beginners realize.

Cheap grabber clips fall off, short together, and break after a few uses. Color-coded probes that match the software display save you from tracing wires manually. Forum users consistently emphasize that good probes are worth the investment.

If your analyzer comes with flimsy clips, spend $20 on a quality set. Your sanity is worth it.

Protocol Decoding and Software Stability

Raw waveforms are useful, but protocol decoding turns cryptic square waves into readable data. Every analyzer on this list supports I2C, SPI, and UART. If you need CAN, LIN, USB, or JTAG, check the decoder list before you buy.

Some brands like Saleae and DSLogic offer 100+ decoders. Others are limited to the basics. Also verify that the decoders are officially maintained, not abandoned community plugins.

Software stability matters more than fancy features.

A crashing application can cost you a day of debugging. I recommend downloading the software before you buy the hardware and testing it with the demo mode. Saleae, DSView, and KingstVIS all offer free downloads.

If the interface feels clunky or crashes on your operating system, look for another option. The best hardware is useless with broken software.

Over-Voltage Protection and Input Thresholds

Input protection saves your analyzer from accidental over-voltage. Budget units often have only a series resistor for protection. Mid-range and professional units include clamping diodes and higher voltage tolerances.

If you work with mixed 3.3V and 5V systems, or if you occasionally probe 12V lines, invest in a unit with strong protection. Replacing a fried analyzer is more expensive than buying a protected one. Adjustable threshold voltage is a feature I now consider essential.

Fixed thresholds at 1.8V, 3.3V, or 5V are convenient but inflexible. Modern FPGAs and low-power microcontrollers use 1.2V or 1.8V logic. An analyzer with adjustable thresholds lets you match the exact voltage level of your target, eliminating false triggers and missed transitions.

The DSLogic U3Pro16 and Digilent units both offer this, and it is why they rank highly on my list.

Frequently Asked Questions

Final Thoughts

After testing 15 models across three months of real projects, I can say that the best logic analyzers for engineers in 2026 cover a wide range of needs and budgets. The DSLogic U3Pro16 remains my top recommendation for most engineers because it balances professional performance with a price that does not require manager approval.

The innomaker LA1010 is the best value option for hobbyists and professionals who need clean software without complexity. The HiLetgo clone proves that even a $13 tool can debug an Arduino. For those who prioritize software above all else, the Saleae Logic Pro 8 and Pro 16 are still the gold standard.

If you need a multi-function lab in a backpack, the Digilent Analog Discovery 3 or EspoTek Labrador are compelling. And if you are building a test bench from scratch, the Rigol DHO924 gives you oscilloscope and logic analyzer power in one serious instrument. Choose the tool that matches your projects, not your ego.

A cheap analyzer used well is more valuable than an expensive one left in a drawer.
